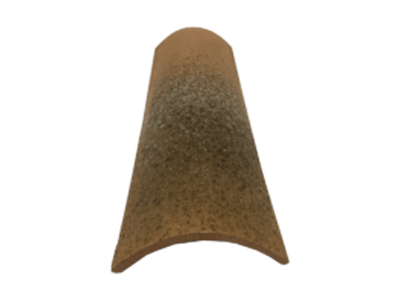

Curved Castell Roof Tile


Curved Castell Roof Tile – Colonial Grandeur, Reinvented

Rediscover timeless colonial elegance with the Curved Castell Roof Tile. Crafted for durability and Mediterranean beauty, it’s perfect for both historic restorations and modern classic designs.
Castell Charm

Curved castell tiles offer a traditional roof look.

High Durability

Resists harsh weather for long-term protection.

Smooth Finish

Gypsum-molded for a fine, consistent texture.

Curved Castell Roof Tile – Colonial Grandeur, Reinvented

The Curved Castell Roof Tile from STIPL Roofz embodies the authentic charm of traditional Spanish and European roofing. Often referred to as a Mission barrel tile, this two-piece clay tile has been a roofing staple across centuries—seen on historic landmarks, Spanish Colonial buildings, and Mediterranean villas.

Handcrafted with precision and fired using La Escandella’s advanced kiln technology, this tile ensures superior resistance to harsh weather conditions, moisture, and time. Its flowing curvature not only delivers an iconic architectural aesthetic but also facilitates excellent water runoff and thermal performance.

Whether you’re restoring a heritage property or creating a classically inspired home, the Curved Castell Roof Tile offers a perfect blend of tradition, performance, and visual appeal. Available in a variety of natural colors to suit your design vision.

  T5 Red clay T5 White clay T45 Red clay T4 Red clay T4 White Clay T40 Red clay TT5 Red clay
Dimensions* A 500 mm / 19.68" A 500 mm / 19.68" A 450 mm / 17.7" A 408 mm / 16.06" A 408 mm / 16.06" A 408 mm / 15.75" A 495 mm / 19.49"
B 210 mm / 8.66" B 220 mm / 8.66" B 200 mm / 7.87" B 180 mm / 7.10" B 180 mm / 7.10" B 150 mm / 5.91" B 220 mm / 8.66"
C 170 mm / 6.70" C 170 mm / 6.70" C 160 mm / 6.30" C 140 mm / 5.51" C 140 mm / 5.51" C 116 mm / 4.57" C 156 mm / 6.14"
Pieces per m2/sq **Depending on overlapping /162 **Depending on overlapping /162 22.7 / 244.3 28 / 301 28 / 301 34 / 366 9 / 97
Pieces per lm 2.4 2.4 2.7 3 3 4 2.4
Weight piece 2.55 kg / 5.62 lbs 2.10 kg / 4.63 lbs 1.95 kg / 4.30 lbs 1.6 kg / 3.53 lbs 1.6 kg / 3.53 lbs 1.35 kg / 3 lbs 2.8 kg / 6.17 lbs
Pieces per pallet 250 300 550 728 624 1150 175
Weight pallet 637.5 kg / 1405.4 lbs 630 kg / 1389 lbs 1073 kg / 2366 lbs 983 kg / 2167 lbs 998 kg / 2200 lbs 1208 kg / 2663 lbs 490 kg / 1080.3 lbs

Frequently Asked Questions

Its curved, castell finish offers a traditional, Mediterranean look for rustic roofs.

Yes, their S-shaped design ensures efficient water runoff, ideal for monsoon areas.

Their curved design is perfect for restoring colonial or traditional buildings.

Their interlocking S-curve and straight bond laying simplify installation, reducing costs.

Yes, their clay construction resists frost and thermal shock, ensuring durability.
