Curved Hispania Roof Tile

Curved Hispania Roof Tile – Classic Mediterranean Beauty

Embrace timeless European elegance with the Curved Hispania Roof Tile. Ideal for new builds and heritage restorations, it blends tradition, durability, and design excellence.

Interested in
Curved Hispania Roof Tile

Explore how Curved Hispania Roof Tile can elevate the aesthetics, durability, and value of your project. At STIPL Roofz, our roofing specialists are ready to provide expert guidance, technical specifications, and the perfect tile recommendation tailored to your architectural vision.

Talk to Roofing Experts
Hispania Elegance

Curved hispania tiles add a classic roof look.

Weatherproof

Resists rain and UV for long-lasting performance.

Secure Fit

Designed for stable, wind-resistant installation.

Curved Hispania Roof Tile – Classic Mediterranean Beauty

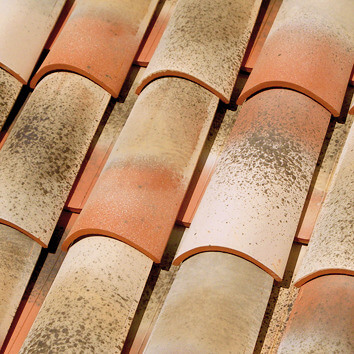

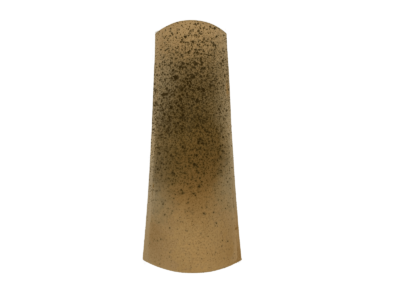

The Curved Hispania Roof Tile from STIPL Roofz is a two-piece Mission barrel tile that captures the essence of traditional Spanish and Mediterranean architecture. Known for its elegant curves and smooth finish, this tile adds depth and character to both modern constructions and historical renovations.

Crafted using high-quality clay and advanced kiln technology from La Escandella, Spain, the Hispania tile is ideal for restoring colonial-style roofs or bringing old-world charm to new builds. Its curved profile not only offers striking aesthetics but also enhances airflow and efficient rainwater drainage.

  T5 Red clay T5 White clay T45 Red clay T4 Red clay T4 White Clay T40 Red clay TT5 Red clay
Dimensions* A 500 mm / 19.68" A 500 mm / 19.68" A 450 mm / 17.7" A 408 mm / 16.06" A 408 mm / 16.06" A 408 mm / 15.75" A 495 mm / 19.49"
B 210 mm / 8.66" B 220 mm / 8.66" B 200 mm / 7.87" B 180 mm / 7.10" B 180 mm / 7.10" B 150 mm / 5.91" B 220 mm / 8.66"
C 170 mm / 6.70" C 170 mm / 6.70" C 160 mm / 6.30" C 140 mm / 5.51" C 140 mm / 5.51" C 116 mm / 4.57" C 156 mm / 6.14"
Pieces per m2/sq **Depending on overlapping /162 **Depending on overlapping /162 22.7 / 244.3 28 / 301 28 / 301 34 / 366 9 / 97
Pieces per lm 2.4 2.4 2.7 3 3 4 2.4
Weight piece 2.55 kg / 5.62 lbs 2.10 kg / 4.63 lbs 1.95 kg / 4.30 lbs 1.6 kg / 3.53 lbs 1.6 kg / 3.53 lbs 1.35 kg / 3 lbs 2.8 kg / 6.17 lbs
Pieces per pallet 250 300 550 728 624 1150 175
Weight pallet 637.5 kg / 1405.4 lbs 630 kg / 1389 lbs 1073 kg / 2366 lbs 983 kg / 2167 lbs 998 kg / 2200 lbs 1208 kg / 2663 lbs 490 kg / 1080.3 lbs

Frequently Asked Questions

Their S-curve and hispania finish offer a classic Spanish aesthetic, ideal for heritage roofs.

Yes, their clay construction resists UV, frost, and heavy rain, ensuring durability.

Their interlocking design and straight bond laying simplify installation, reducing costs.

Their low water absorption and salt resistance make them ideal for coastal areas.

No, their durable clay finish minimizes maintenance, resisting weathering.
