Curved Elegance

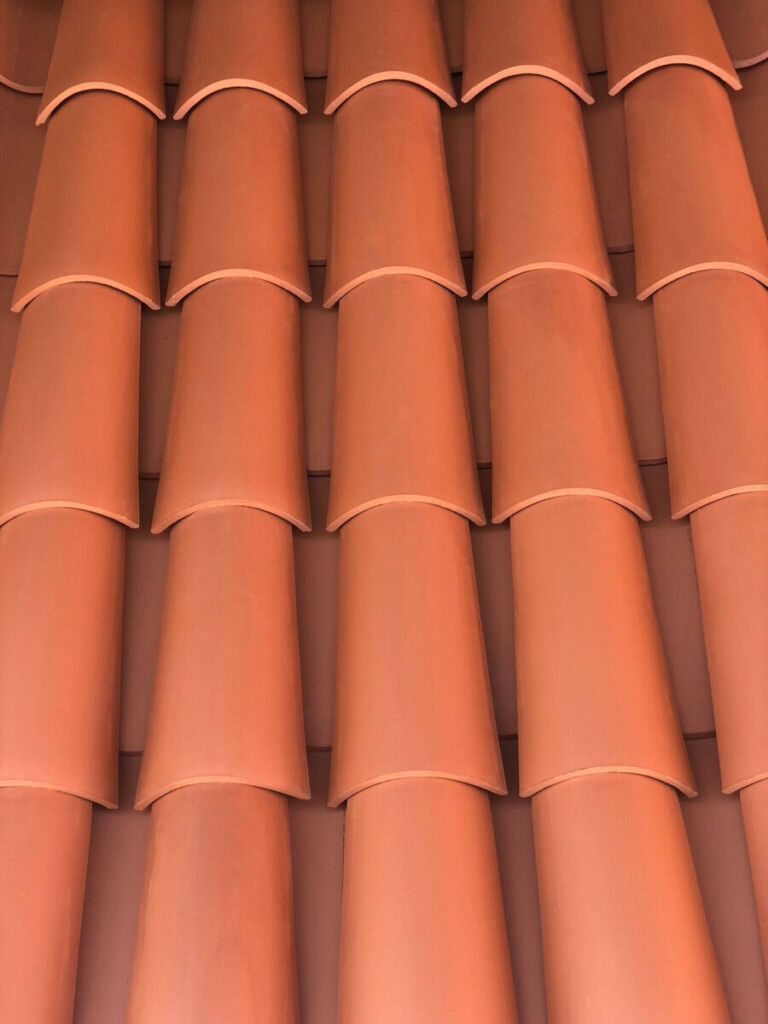

Curved red tiles add a classic, stylish roof profile.
Durable Finish
Resists fading and weathering for lasting beauty.
Secure Fit
Designed for easy, stable installation on roofs.
Curved Red Tile – Classic Beauty Reimagined

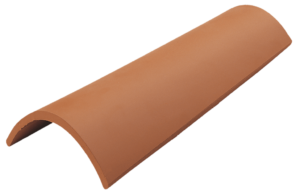

The Curved Red Roof Tile, also known as the Mission barrel tile, is a hallmark of classic European and Spanish Colonial architecture. Traditionally composed of two pieces, this tile style has stood the test of time—adorning rooftops across Europe and the New World for centuries.
Today, its timeless appeal, natural terracotta tones, and multiple sizing options make it ideal for both new constructions and the restoration of historic buildings affected by time and weathering.
Crafted from premium red and white clay, STIPL Roofz offers this tile in various formats including T5, T45, T4, T40, and TT5, allowing architects and homeowners to choose the size and curvature that best fits their design needs.

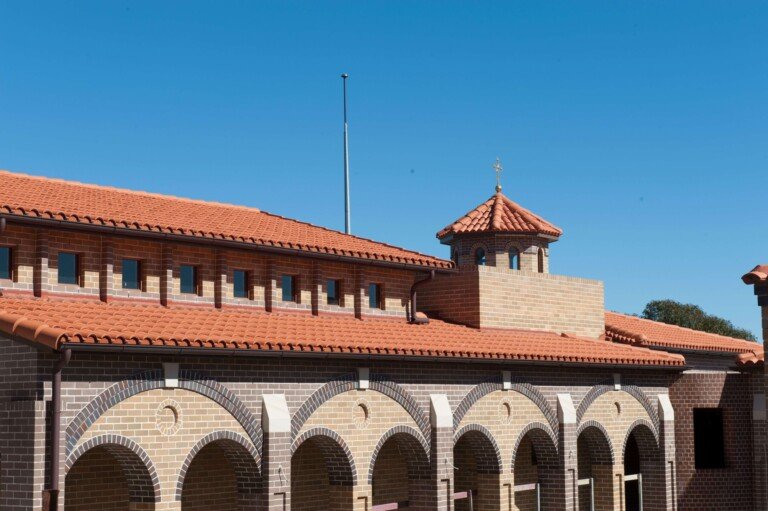

From luxury villas and resorts to temple restorations and old-world residences, the Curved Red Roof Tile delivers character, charm, and craftsmanship with every piece.
| T5 Red clay | T5 White clay | T45 Red clay | T4 Red clay | T4 White Clay | T40 Red clay | TT5 Red clay | |
|---|---|---|---|---|---|---|---|
| Dimensions* | A 500 mm / 19.68" | A 500 mm / 19.68" | A 450 mm / 17.7" | A 408 mm / 16.06" | A 408 mm / 16.06" | A 408 mm / 15.75" | A 495 mm / 19.49" |
| B 210 mm / 8.66" | B 220 mm / 8.66" | B 200 mm / 7.87" | B 180 mm / 7.10" | B 180 mm / 7.10" | B 150 mm / 5.91" | B 220 mm / 8.66" | |
| C 170 mm / 6.70" | C 170 mm / 6.70" | C 160 mm / 6.30" | C 140 mm / 5.51" | C 140 mm / 5.51" | C 116 mm / 4.57" | C 156 mm / 6.14" | |
| Pieces per m2/sq | **Depending on overlapping /162 | **Depending on overlapping /162 | 22.7 / 244.3 | 28 / 301 | 28 / 301 | 34 / 366 | 9 / 97 |
| Pieces per lm | 2.4 | 2.4 | 2.7 | 3 | 3 | 4 | 2.4 |
| Weight piece | 2.55 kg / 5.62 lbs | 2.10 kg / 4.63 lbs | 1.95 kg / 4.30 lbs | 1.6 kg / 3.53 lbs | 1.6 kg / 3.53 lbs | 1.35 kg / 3 lbs | 2.8 kg / 6.17 lbs |
| Pieces per pallet | 250 | 300 | 550 | 728 | 624 | 1150 | 175 |
| Weight pallet | 637.5 kg / 1405.4 lbs | 630 kg / 1389 lbs | 1073 kg / 2366 lbs | 983 kg / 2167 lbs | 998 kg / 2200 lbs | 1208 kg / 2663 lbs | 490 kg / 1080.3 lbs |
