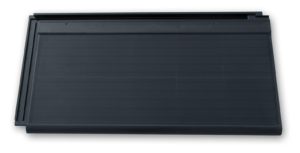

Planum Photovoltaic Solar System


Planum Solar Tile – Power Meets Elegant Design

Generate solar energy without compromising on aesthetics. Planum Photovoltaic Solar Tiles from STIPL Roofz combine the look of traditional clay tiles with cutting-edge solar technology for smart, sustainable living.
Solar Integration

Planum photovoltaic system generates clean roof energy.

Durable Design

Resists weathering for reliable solar performance.

Easy Installation

Seamlessly integrates with Planum roof tiles.

Planum Solar Tile – Power Meets Elegant Design

At STIPL Roofz, innovation meets sustainability with the Planum Photovoltaic Solar System—a cutting-edge roofing solution that combines the timeless beauty of ceramic tiles with the power of renewable energy.

These tiles are specially engineered to integrate solar panels directly into the roofing system, eliminating the need for bulky and visually disruptive panels. Their sleek, flat design aligns perfectly with the Planum tile profile, ensuring a visually harmonious finish that enhances both aesthetics and performance.

Manufactured by La Escandella, these solar tiles are part of an advanced R&D&I initiative that puts design, energy generation, and durability at the forefront. With high-quality ceramic surfaces and integrated photovoltaic cells, the Planum Solar System ensures maximum energy yield, high weather resistance, and minimal maintenance—ideal for Indian environmental conditions.

Whether you’re constructing a green-certified home, a commercial property, or a sustainable architectural landmark, these tiles serve as a dual-purpose solution: roofing that protects and powers.

At STIPL Roofz, customer satisfaction is a cornerstone of our philosophy. That’s why we provide personalized support and consultation for every solar project—helping clients select, plan, and implement solar roofing systems that align with their energy goals and architectural vision.

Choose Planum Photovoltaic Solar Tiles from STIPL Roofz—where sustainable living begins at the roof.

Dimensions* A 823 mm / 32.40"
B 340 mm / 13.38"
C 61 mm /2.40"
Tiles/ m2 3.2
Equal to Planum tiles 3.5
Unit weigth 11.2 Kg / 24.69 lb
Nº of monocrystalline cells 10 (2x5)
Cell Size 156 x 156 mm / 6.14 x 6.14"
Laying Broken bond
Treated wood batten 5 x 5 x 240 cm / 1.96 x 1.96 x 94.48"
Rated Maximum Power 47 Pmax/ W
Power/ m2 150 W
Maximum efficiency 17%
Maximum Power Voltage 5.18 Vmp/ V
Open-circuit Voltage 6.67 Voc/ V
Maximum Power Current 9.19 lmp/ A
Short-circuit Current 9.68 Isc/ A
Nº of solar tiles/ kw 21
STC: Irradance 1.000 W/m · Module Temperature: 25º · AM = 1.5

Frequently Asked Questions

Integrated photovoltaic cells capture solar energy while maintaining the aesthetic of traditional Planum tiles.

No, their sleek, flat design blends seamlessly with standard Planum tiles for a harmonious roof look.

They achieve up to 17% efficiency, providing significant energy output for sustainable homes.

Yes, their ceramic surface and robust design resist heat, rain, and UV, ideal for Indian conditions.

Yes, professional installation is recommended to ensure optimal solar performance and roof integration.
